    GE series Push-in connection

    GE series Push-in connection

    Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which greatly facilitates the installation and maintenance of complex control equipment.



    GKONCY produces several thousand varieties of heavy-duty connectors, including GA, GE, GEE, GD, GDD, GSB, GK, GQ series, GE-Z push-in heavy-duty connectors, and terminal blocks. The company has comprehensive inspection and control of product safety, reliability, and applicability to ensure the best performance of the products.



    Heavy-duty connector series products are designed and tested in strict accordance with VDE0110, VDE0627 and other standards, and have passed UL, TUV, CE and EAC certification.



    The connector body is made of flame retardant grade V0 material, which complies with UL94 V0. The maximum operating temperature is usually 80℃. However, after special treatment with PC reinforcement, it can withstand an external temperature of up to 125℃



    The protective housing is usually made of cast aluminum, and the surface of the housing is treated with powder coating or self-extinguishing thermoplastic material (special series) to make it resistant to impact or mechanical pressure. The seal between the housings can also make the protection level of the connector housing reach IP65 (EN60529).



    GE PUSH-in crimping method requires few tools, is very quick and easy to install, saves space, and has good functional safety performance

    Share:

    Product Description

    Overview

    Certification

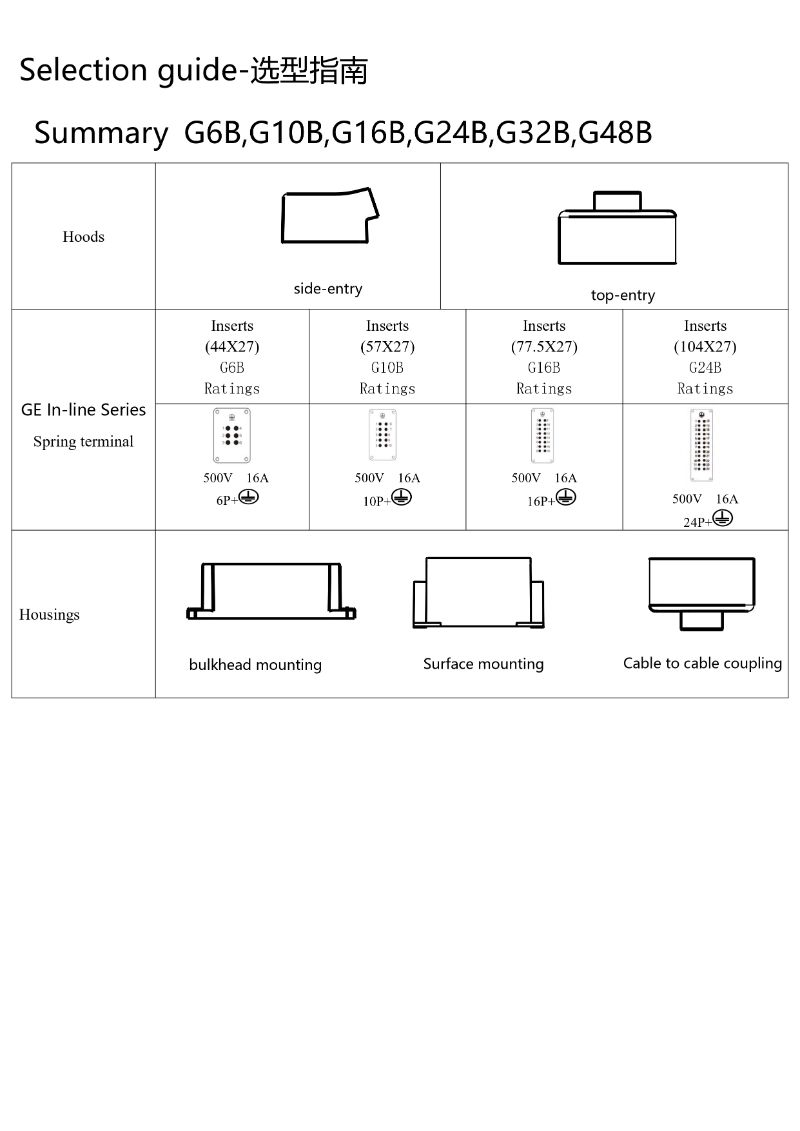

    Selection guide

    Heavy-duty connectors are mainly used for electrical or signal connections between different devices or functional units, which greatly facilitates the installation and maintenance of complex control equipment.

    GKONCY produces several thousand varieties of heavy-duty connectors, including GA, GE, GEE, GD, GDD, GSB, GK, GQ series, GE-Z push-in heavy-duty connectors, and terminal blocks. The company has comprehensive inspection and control of product safety, reliability, and applicability to ensure the best performance of the products.

    Heavy-duty connector series products are designed and tested in strict accordance with VDE0110, VDE0627 and other standards, and have passed UL, TUV, CE and EAC certification.

    The connector body is made of flame retardant grade V0 material, which complies with UL94 V0. The maximum operating temperature is usually 80℃. However, after special treatment with PC reinforcement, it can withstand an external temperature of up to 125℃

    The protective housing is usually made of cast aluminum, and the surface of the housing is treated with powder coating or self-extinguishing thermoplastic material (special series) to make it resistant to impact or mechanical pressure. The seal between the housings can also make the protection level of the connector housing reach IP65 (EN60529).

    GE PUSH-in crimping method requires few tools, is very quick and easy to install, saves space, and has good functional safety performance

    Welcome to consult us for more information!
